Produktdetails:
|
Einzelteil: | 16 Portpoe Schalter | Funktion: | POE, industriell |
---|---|---|---|
Übertragungsrate: | 1000Mbps | Stromversorgung: | AC110V/220V |
Maximale Spitzenleistung: | 250W (einzelner Hafen: 15.4W) | Maß: | 44*440*160 Millimeter (H*W*D) |

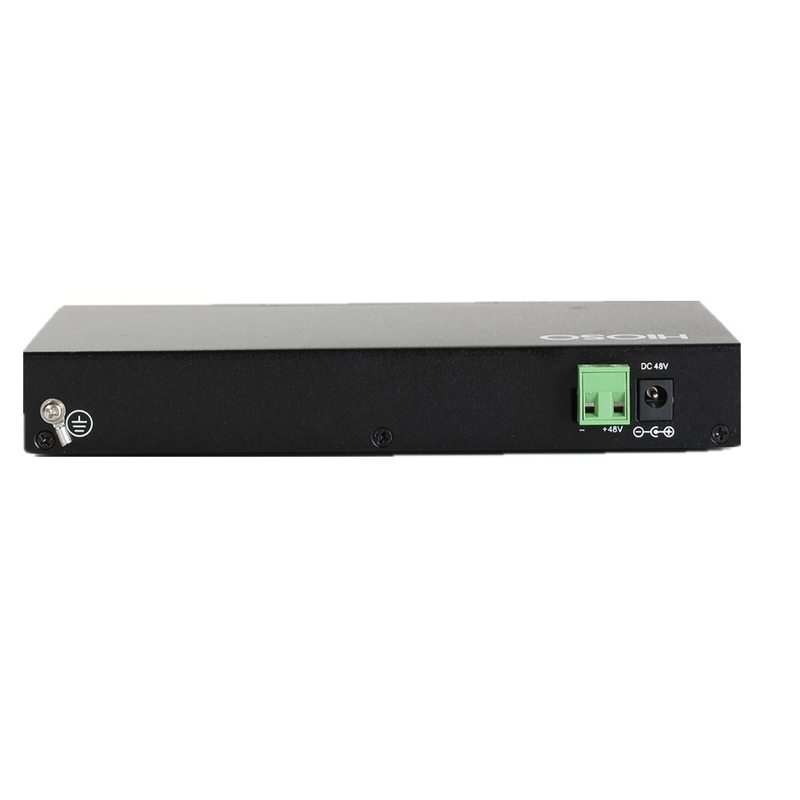

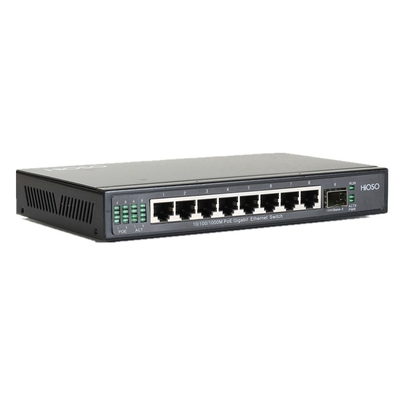

Multifunctional Optical Fiber Switch Fast 8 Port Poe Ethernet Switch
Overview
FOWAY1509PFS supports IEEE802.3af 15.4W and IEEE802.3at 30W PoE standards. It can auto discover the power receiving devices which support IEEE802.3af/at standard and supply power to it. To the connected devices which not support PoE, it will auto stop supplying power.
Character
Technical Specification
Parameter |
Specification |
PoE |
PoE ports: 8 ports Standard and power consumption: IEEE802.3af 15.4W, IEEE802.3at 30W Working mode: auto discovery power receiving devices and auto power supply/power cutting |
Wavelength |
SFP Module: 850nm/1310nm/1490nm/1550nm |
Distance |
1000M SFP multi-mode:220m (fiber 62.5/125μm) / 550m (fiber 50/125μm) ;Single-mode:10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80/100/120Km |
Port |
8 10/100/1000M RJ45 ports (PoE optional); 1 100M/1000M SFP uplink port |
MAC |
16K |
Buffer memory space |
2Mbit |
Bit error rate |
<1/1000000000 |
MTBF |
100000 hours |
Power |
DC48V |
